Kubota SQ3200 Generator

QLD,SA,WA

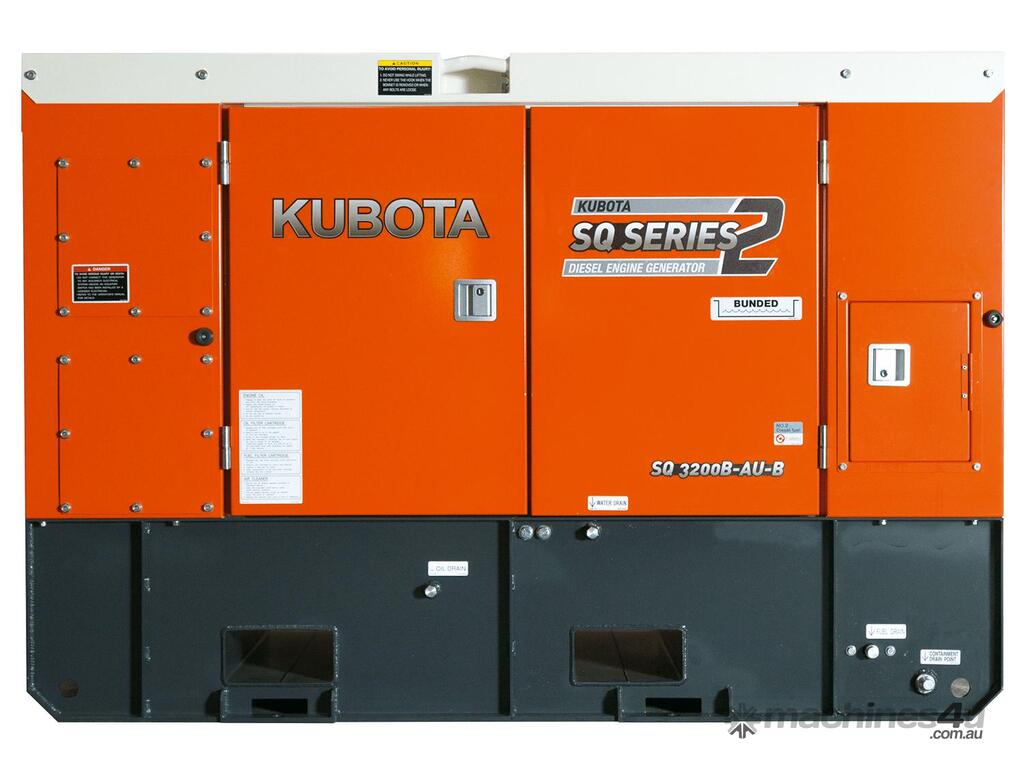

Kubota SQ3200 Four Pole Fully Sound Attenuated Single Phase Diesel Generator.

The SQ Series of diesel generators provides a much quieter, more efficient and longer service life machine, for applications where you need safe and economical electrical power.

Cleaner Power: The 03 and V3300 series of engines used in the SQ series incorporates the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions
Dependable Power: The brushless, self-excited type alternator is designed to deliver high quality power
Quieter Power: Sound levels at full load and no load are minimised due to world renowned Kubota technology including quieter cooling fans, second mufflers and noise absorbing ducts within the cabinets
Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems, and all rotating parts are enclosed in a sturdy lockable enclosure

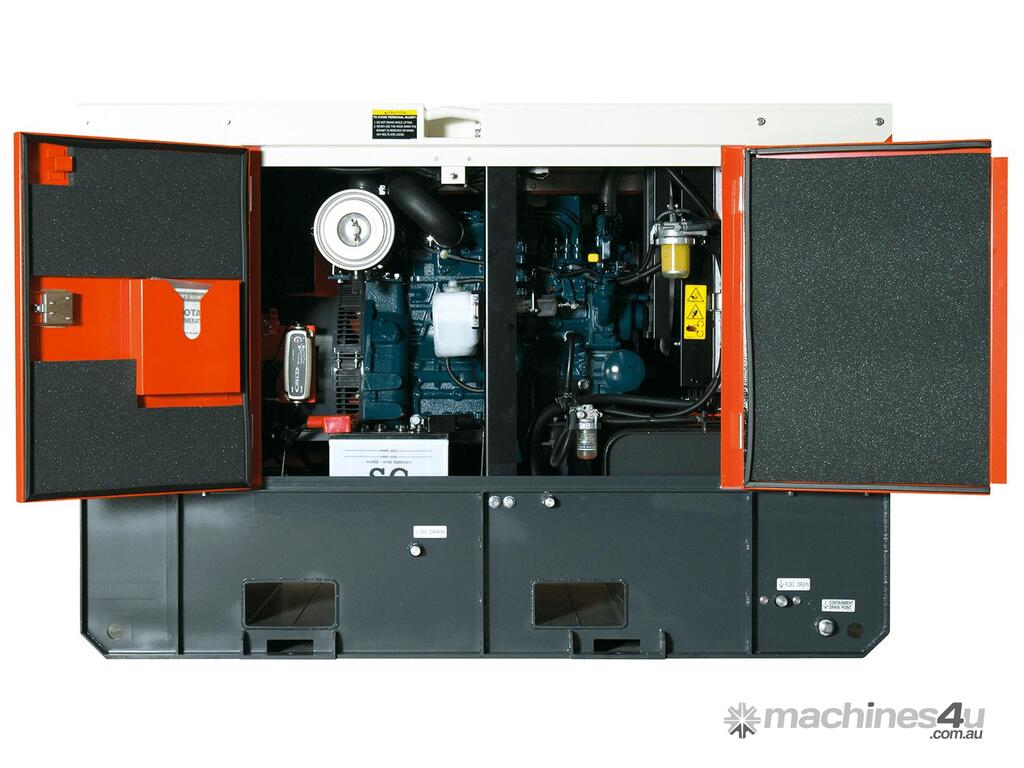

Simple Maintenance: Oil, water and filters are located on one side of the machine for ease of maintenance
Ease of Transport: Centre-lifting lugs and forklift slots ensure that the transport of the SQ series is kept as easy as possible

SPECIFICATIONS
Set
Fuel Diesel
Fuel Tank Cap 62 L
Operating hrs 15.5 Full Load
Start System Electric
Weight 730kgs
Sound Levels 63dBA 7m
Dimensions 1675mm x 780mm x 970mm
Engine
Model V2203-EBG
Type Vertical Water Cooled Diesel Engine
Displacement 1647cc
Cylinders 4
Bore & Stroke 87mm x 92.4mm
Rated Output 18.4kW 1500rpm
Alternator
Type Revolving Field
Max Output 22.0kVA (17.6kW)
Rated Output 20.0kVA (16.0kW)
Voltage 240/415
Frequency 50Hz
Current 27.8Amps
Power Factor .8
Poles 4
Voltage Regulation AVR
