Kubota J310 Generator

QLD,SA,WA

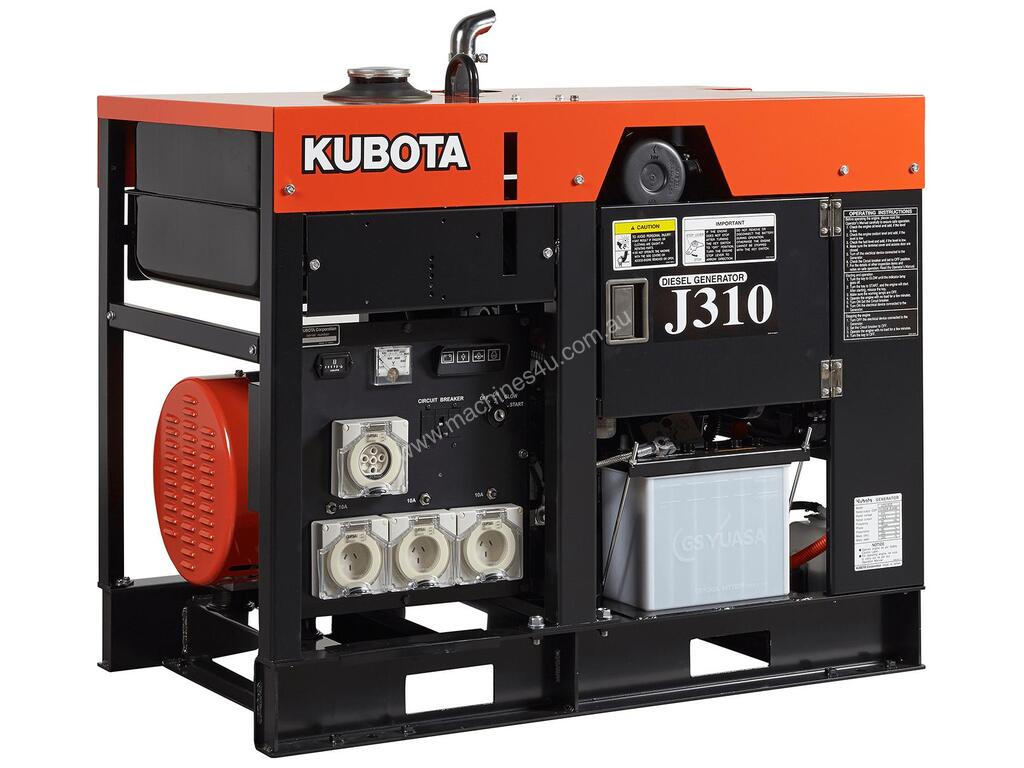

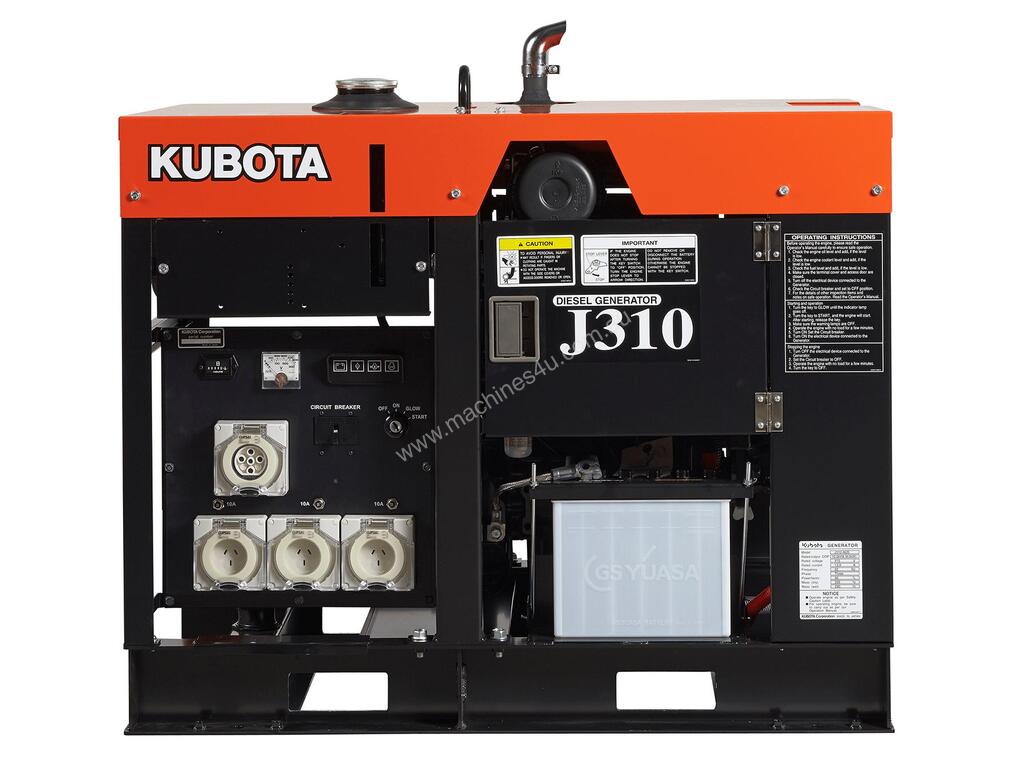

Kubota J310 Two Pole Partially Enclosed Three Phase Diesel Powered Generator.

The J Series advanced design and superior engineering minimise both space and weight to ensure that it will fit in most any place you wish to put it.

High Output: The Vertical Diesel Engine, coupled to a two pole generator, ensures high output at minimal size and weight
Skewed Rotor: The wave form deformation is kept to a minimum with the development of a skewed rotor while damper windings protect the generator during a short circuit
Large Fuel Tank: The larger capacity fuel tank enables longer periods of operation on a single tank of fuel
Enhanced Transportability: A single point lifting eyelet and forklift openings enhance the series’ transportability
Access Terminals for AMF: New access terminals are provided for easy wiring with the auto start / stop systems
Easy Maintenance: Oil, water and filters are located on one side for ease of maintenance and a double air cleaner element provides extra peace of mind.

SPECIFICATIONS
Set
Fuel Diesel
Fuel Tank Cap 37 L
Operating hrs 11.5 Full Load
Start System Electric
Weight 255kgs
Sound Levels 75dBA 7m
Dimensions 995mm x 593mm x 860mm
Engine
Model D722
Type 4-Cycle Water Cooled Diesel Engine
Displacement 719cc
Cylinders 3
Bore & Stroke 67mm x 68mm
Rated Output 10.3kW 3000rpm
Alternator
Type Revolving Field
Max Output 11kVA (8.8kW)
Rated Output 10kVA(8kW)
Voltage 240/415
Frequency 50Hz
Current 13.9 Amps
Power Factor 0.8
Poles 2
Voltage Regulation AVR
