CPS275 Cu Diesel Air Compressor

QLD,SA,WA

Genelite is the exclusive distributor of Chicago Pneumatic compressors in Australia.

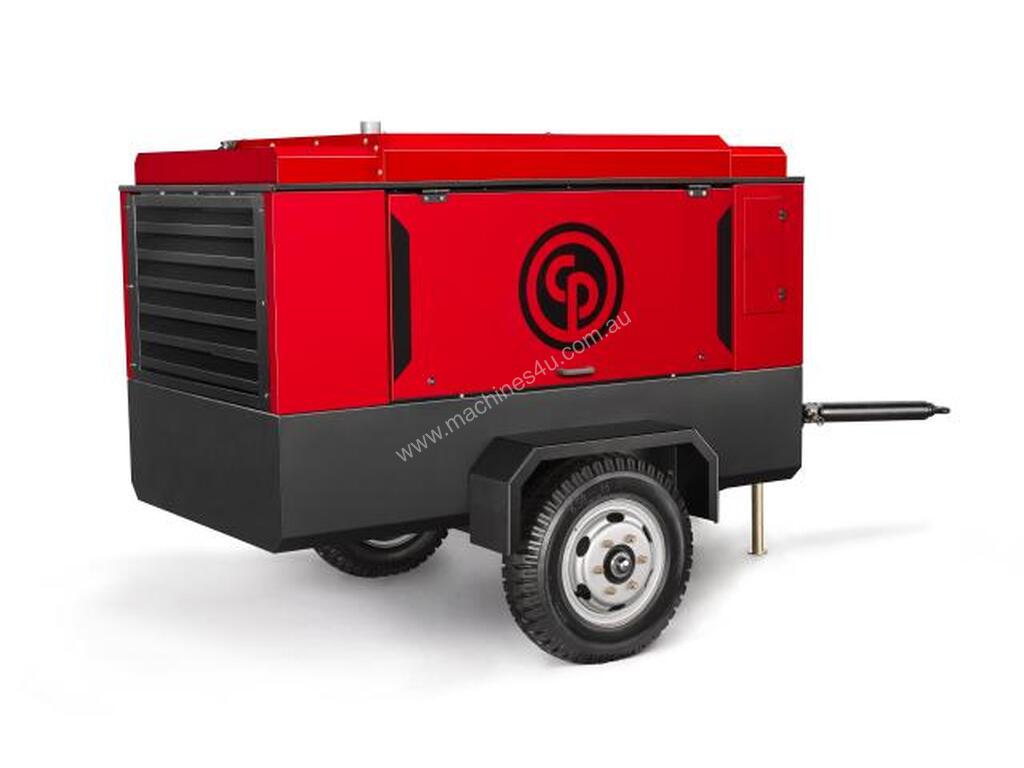

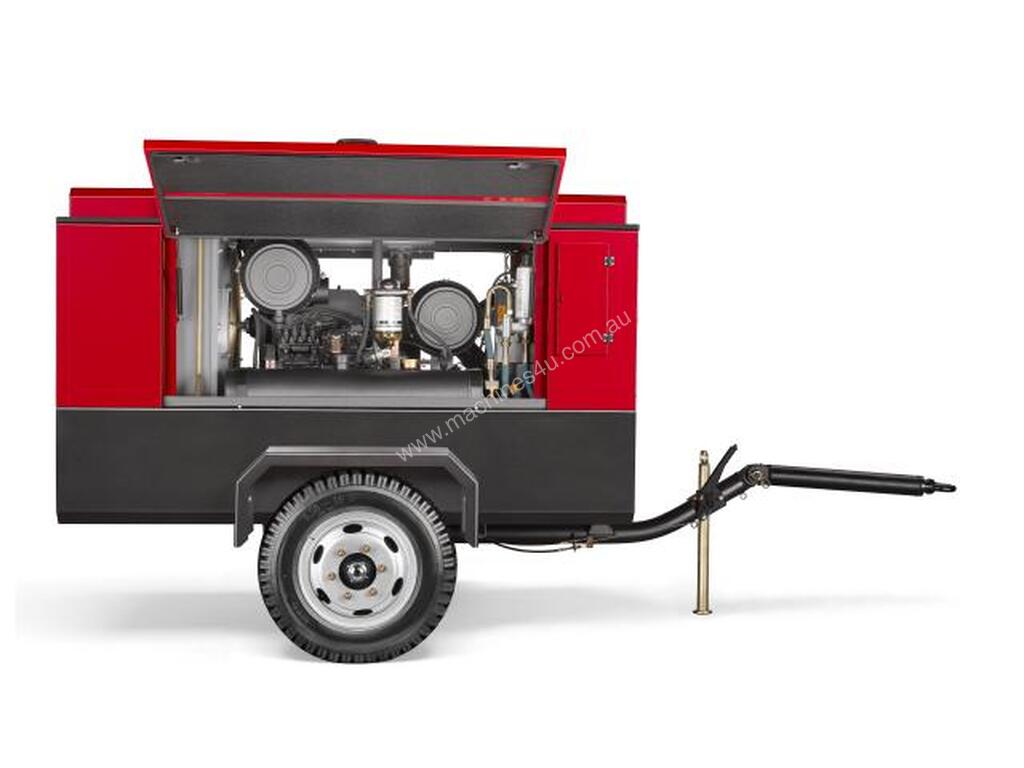

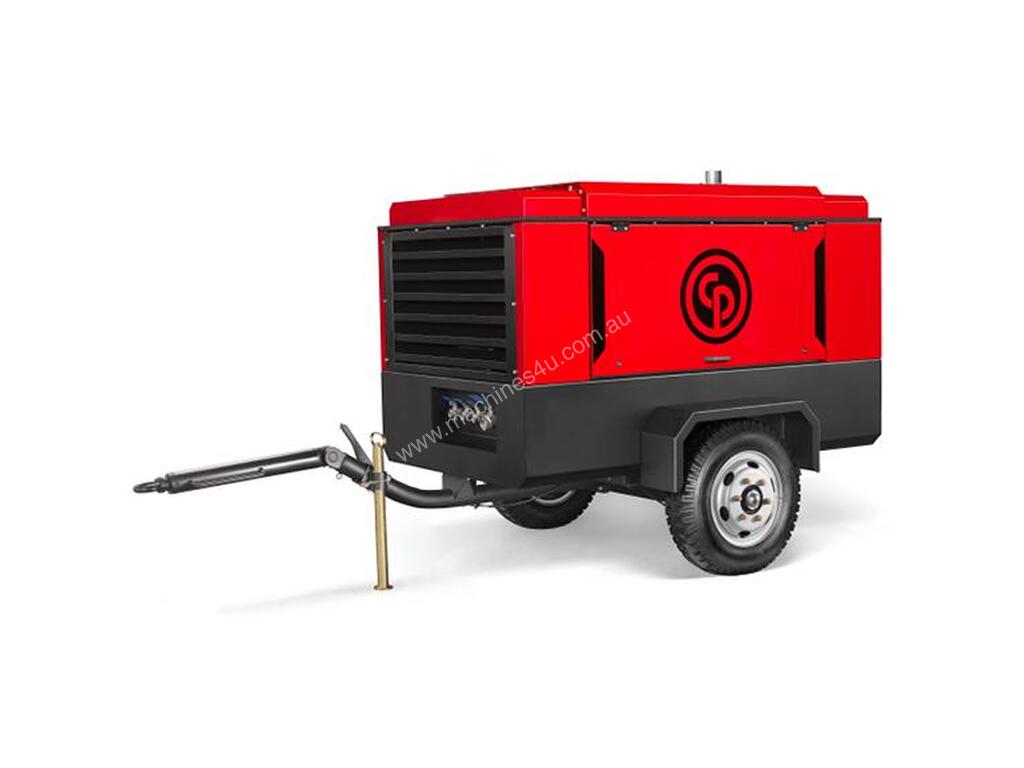

The Chicago Pneumatic CPS 275 – CPS400 are a direct-drive oil-injected rotary screw type of air compressor, powered by a water-cooled Cummins diesel engine. The unit consists of an element, diesel engine, cooling, air/oil separation and control systems – all enclosed within a sound-dampened strong canopy. Special attention has been given to the overall product quality, user friendliness, ease of serviceability, and economical operation to ensure best in class cost of ownership.

Note: This unit comes into Australia without an undercarriage. If you would lie an undercarriage, we can make one here is Australia for an additional charge. Contact us for more info.

Features
Reputable engine brand
Efficient screw element
Efficient air/fuel filtration
Galvanized powder-coated canopy
User-friendly instrument panel
Low noise level
Robust single axle undercarriage

Benefits
World-wide support, high up-time
Efficiency, low cost of ownership
Protection from engine damage, low cost of ownership
Robust, impact-resistant, all guaranteeing a higher resale value
Ease of operation, protected from operators’ fault
Able to work in noise sensitive areas
Low transportation costs

Performance
Normal effective working pressure bar 7
Actual free air delivery m3/min 8.0
Max. sound power level (Lw) dB(A) 104
Max. sound pressure level at 7 m (Lp) dB(A) 77.9
Max. ambient temperature °C 50
Max. ambient temperature with aftercooler °C 50
Air compressor outlets 1 x 1”+ 3 x G3/4”
Min. starting temperature (with cold start equipment) °C -10 (-25)

Compressor
Compressor type Screw
Number of stages 1
Oil capacity L 20

Engine
Cummins 4BTA3.9-C80
Number of cylinders 4
Output at rated speed kWt 60
Swept volume L 3.9
Engine speed (nominal) rpm 2000
Engine speed (unloaded) rpm 1400
Capacity oil system L 9
Capacity of fuel tank L 185
Fuel consumption at 100% load kg/h 14.6
Speed regulation Mechanical
Electrical system V 24
